6FM 100HT 12V 100AH Sealed Rechargeable Batteries M8 Terminal

Product Categories
Champion Storage Battery Company Limited
Contact Now

6FM 100HT 12V 100AH Sealed Rechargeable Batteries M8 Terminal

  • 1
  • 2

Brand Name : Champion

Model Number : 6FM100HT

Certification : CE ; UL

Place of Origin : China

MOQ : 100

Price : negotiation

Payment Terms : 30% in advance, T/T

Supply Ability : 300,000 pieces per month

Delivery Time : 25 days

Packaging Details : Carton box

Model Name : 12v100ah

Size : 330*171*214 mm

Voltage : 12V

Terminal : M8

Capacity : 100AH

Color : Black

Weight : 14.5kg

Application : UPS

Contact Now

6FM 100HT 12V 100AH Sealed Rechargeable Batteries , Sealed Lithium Battery

Description:

The 12V100Ah LFP rechargeable battery is optimized for low rate application which require high energy density.

Long cycle life, High energy density, Automatic protection with BMS internal, Low self-discharge Excellent performance in all the operating temperature

Constant Voltage Charge

Cycle use : 14.4-15.0V

Standby use : 13.5-13.8V

Initial current : less than25A

CAUTION:
●AVOID SHORT CIRCUIT
●DO NOT CHARGE IN A SEALED CONTAINER
●KEEP SPARKS FL AME AWAY
●RECHARGE IMMEDIATELY AFTER DISCHARGE

Applications:

2V Series,6V, 12V Series

1. Green energy systems (solar, wind, hydro, etc)

2. Solar power stations

3. Pump systems

4. Telecommunications installations

5. Measurement stations

6. Boats or buoys

7. Signal station

8. Survey and Mapping system

9. Emergency lighting

10. Caravans

11. Traffic lights

12. Street lightening

13. Lawn lamp

14. Street signs

15. SOS pillars

17. Alarm installations

18. Weekend cottage camping

Specifications:

Nominal Characteristics
Nominal Voltage /V 12.8
Nominal Capacity/Ah(25℃,0.5C) 100
Mechanical characteristics
Weigh(approximate)Kg 14.5
Dimension L*W*H /mm 330*1172*220
Terminal F12
Electrical Characteristics
Voltage Range/V 9-14.6
Float charge voltage/V 13.8
Max continue discharge current/A 70
Max permanent discharge current/A 150A 10Sec.
Max continue charge current/A 70

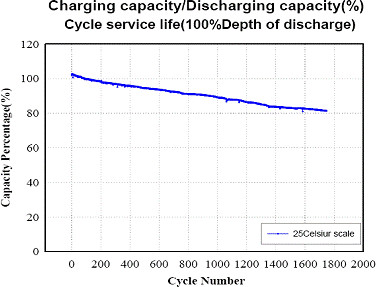

Cycle life(+20℃ 0.2C 100% DOD) ＞2000 Cycle
Operating Conditions

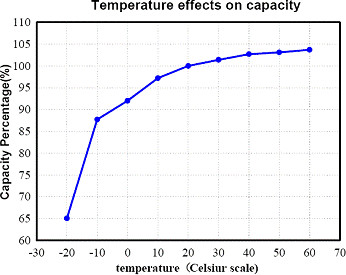

Operating temperature Discharge -30 to 60℃,charge 0 to 60℃
Storage temperature 0℃ to 30℃
Storage duration 12 months at 25℃

6FM 100HT 12V 100AH Sealed Rechargeable Batteries M8 Terminal6FM 100HT 12V 100AH Sealed Rechargeable Batteries M8 Terminal

Competitive Advantage:

First class ABS container

Low self-discharge

Long service life

Manufacture with more than 10 years history

Capable of high discharge rates

Best cost performance

6FM 100HT 12V 100AH Sealed Rechargeable Batteries M8 Terminal


Product Tags:

100AH Sealed Rechargeable Batteries



6FM Sealed Rechargeable Batteries



M8 Terminal Sealed Lithium Battery 


Wholesale 6FM 100HT 12V 100AH Sealed Rechargeable Batteries M8 Terminal from china suppliers
